Rubber Lined Pipe | Steel Piping Rubber Lining

Home Lined Pipe Hose Rubber Lined Pipe | Steel Piping Rubber Lining

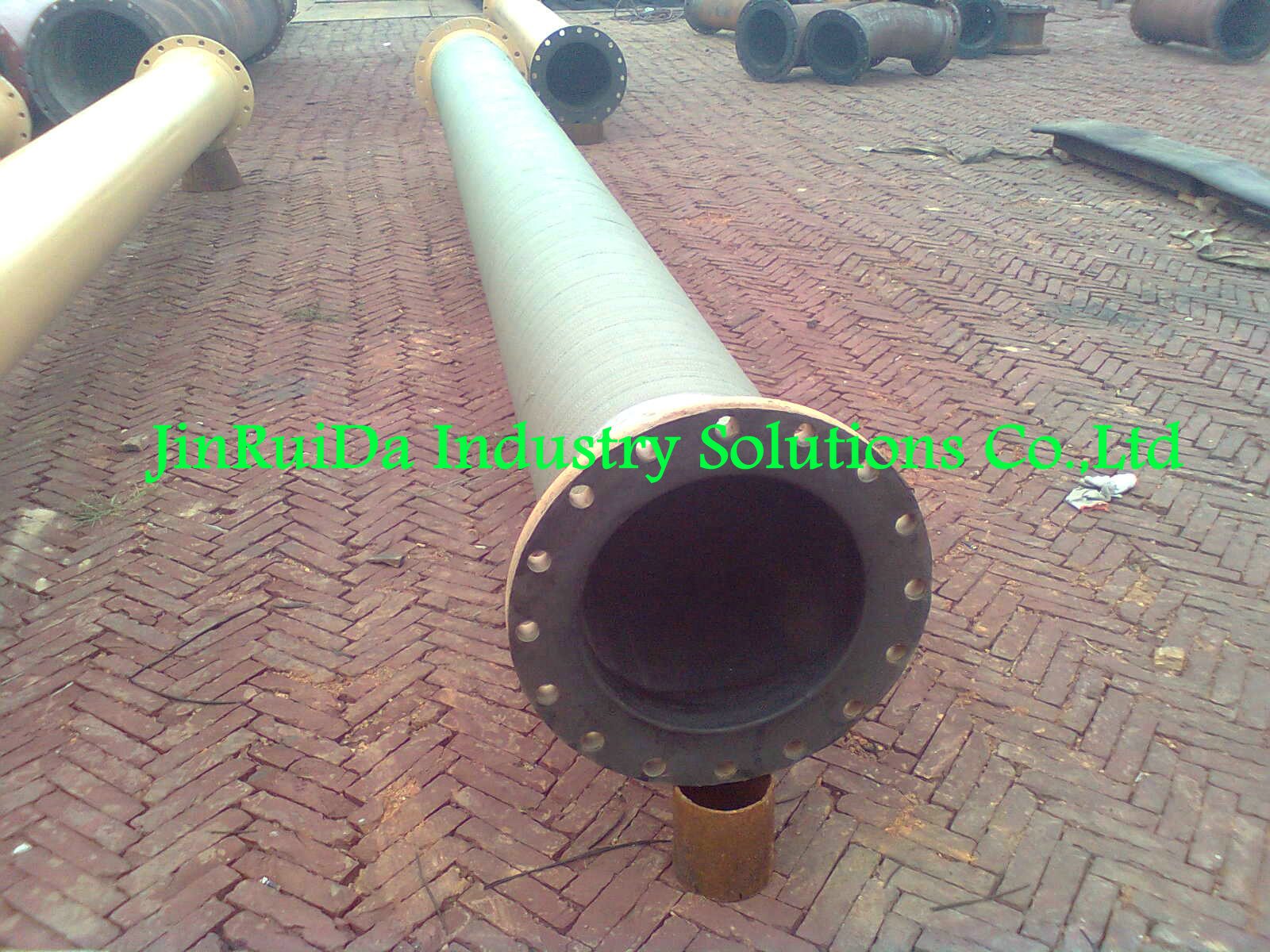

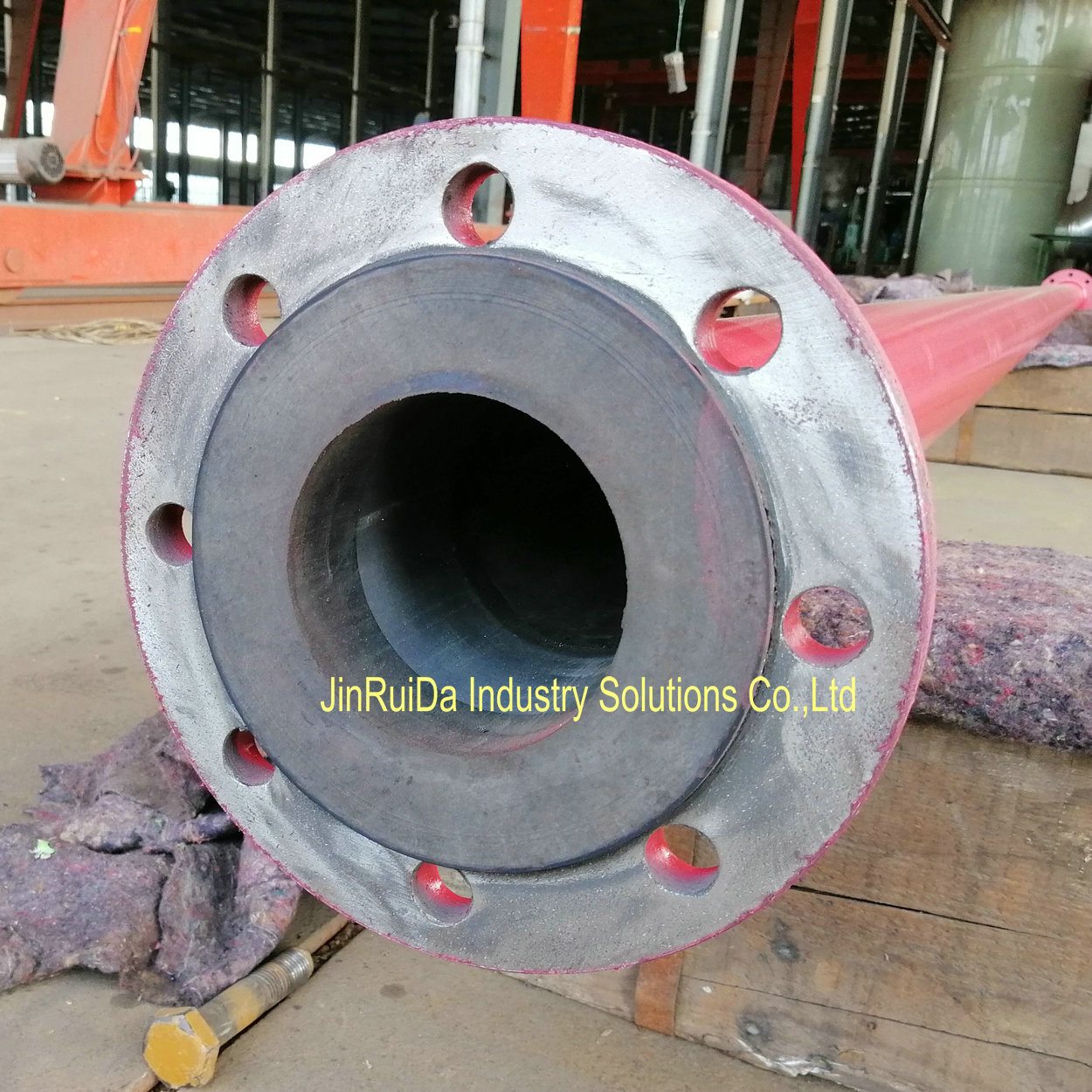

Rubber Lined Pipe | Steel Piping Rubber Lining

Diameter: 100mm To 2500mm

Presure: 1.6Mpa 2.0Mpa 2.5Mpa 3.0Mpa 4.0Mpa

Length: Within 12M

Rubber Lining: 4mm 6mm 8mm 12mm 20mm

Surface:  Epoxy Resin Paint Or Antirust Paint

Lined Pipe Hose, Featured Products2018-04-25JRD Industry Solutions

Description

Rubber Lined Pipe ( Steel Piping Rubber Lining ) protect Pipeline with their Characteristic of wear resistance, corrosion resistance, high temperature resistance. it is one Main kind of Wear Resistant Pipe.

1, Carbon Steel Pipe Or Stainless Steel Pipe As Framework For Steel Piping Rubber Lining ,

2, High Wear Resistant Rubber, Corrosion Resistant Rubber, High Temperature Resistant Rubber As Rubber Lining

3, High-Performance Adhesives For Rubber Lining On the Steel Pipe Inner. Adhesives made by our workshop, So that make sure Piping will be well use.

4, Surface should be Anti corrosive spray paint

5, Wear Resistant vulcanized rubber For Pipe liner Working Time Always above 10 Years

6, For Iron Ore Mine Tailing Mining Slurry Pipe

7, For Sea Water Dredging pipe

8, For electric-power plant factory industry Desulphurization pipeline

9, For chemical plant factory Sewage Pipe

Advantage:

1, Optimized Structure

Steel Pipe Rubber Lining Be Made Of The Steel Pipe Is Bonded With Rubber Layer As An Integral,

Having Advantages Of Both Carbon Steel Pipe Pressure Endurance And Rubber Lining Wear Resistance

With Excellent Overall Price/Performance Ratio.

2, Superior Wear Resistance Performance

The Abrasion Value Of Steel Pipe Rubber Lining Is Within 0.02~0.10 Cm³/1.61km,

3~5 Times Of That Of Plastic Lining Pipe

4~6 Times Of That Of Steel Pipe.

So That It Can Be Good Wear Resistant Pipe Line For Mining Slurry Project

3, Long Service Life

Steel Pipe Rubber Lining Has The Feature Of Superior Anti-Aging Performance.

The Working Service Life Of Steel Pipe Rubber Lining May Be Up To 15 Years Or More (Theoretically)

Generally Under Normal Operating Pressure And Temperature. Steel Pipe Rubber Lining May Repetitively Use For Four Times

With Lower Costs, Short Duration Of Fabrication, Ensuring Construction Period.

Application Fields:

1, Ore Concentrate Tailing Transportation Project

2, Coal Fired Power Plant Ash Conveying Project

3, Chemical Factory Anti Corrosive Discharge Project

4, Coal Mine Back Fill Project

5, Dredging Engineering Project

Steel Framework Requirement:

Pipe Framework Materials: ASME B36.10, ASME B16.5 ASTM A53 GR B, A105 / A106 CL150 ( ERW Welded Steel Pipe , Seamless Steel Pipe , Spiral Steel Pipe )

Metal Pipe Materials: Carbon Steel Pipe , Ductile Iron Pipe , Galvanized Steel Pipe , Mild Steel Pipe , Cast Steel Pipe , Forging Steel Pipe

Nominal Diameter:

DN40 DN50 DN65 DN80 DN100 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600 DN650 DN700 DN750 DN800 DN900 DN950 DN1000 DN1200 DN2000

NB40 NB50 NB65 NB80 NB100 NB150 NB200 NB250 NB300 NB350 NB400 NB450 NB500 NB600 NB650 NB700 NB750 NB800 NB900 NB950 NB1000 NB1200 NB2000

Nominal Pressure: 16Bar 20Bar 25Bar 30Bar 35Bar 40Bar

Rubber Lining Hardness: 60-65 Shore A

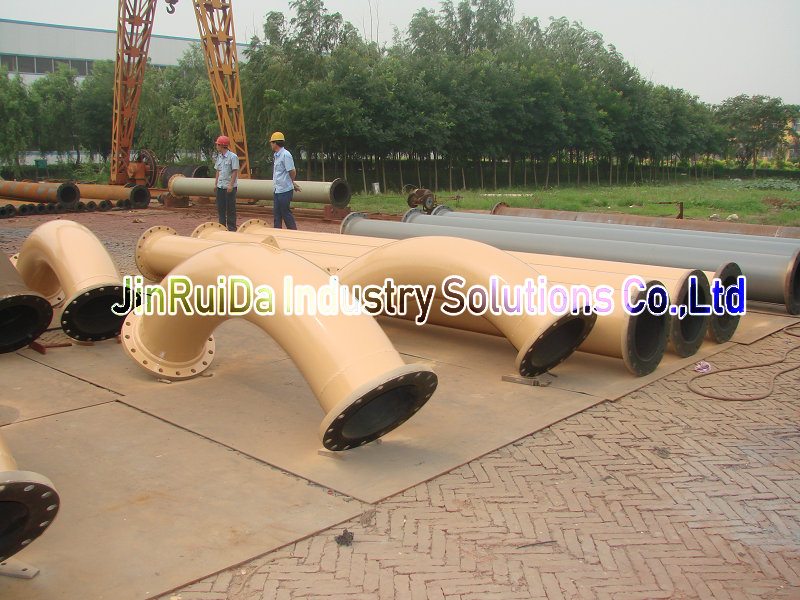

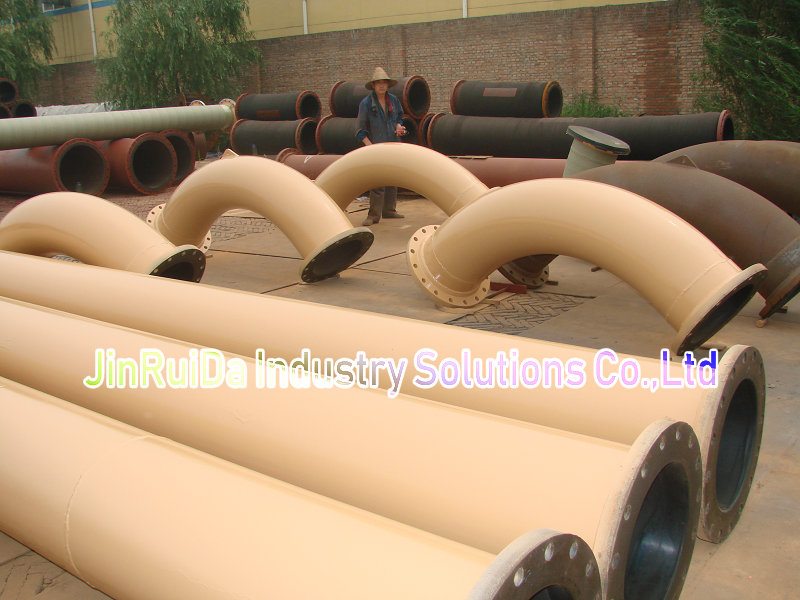

Fitting Type: Straight Pipe, Bevel End Pipe , Offset, Curved Pipe, Tee Pipe, Four-Way Pipe, Expanding Pipe, Etc.
Spool Works: Elbow / Bend, Tee, Reducer, Cross, Flange, Spool Work, Joint, Fabrication

Length : 3M, 6M, 8M 9M, 10M, and 12M

Flange Scope: SO RF Flange SW Connections Raised Face Flange

Size: 40mm 50mm 65mm 80mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 600mm 650mm 700mm 750mm 800mm 900mm 950mm 1000mm 1200mm 2000mm

Rubber Liner Materials:

Natural Rubber , Vulcanized rubber , Neoprene Rubber , Synthetic Rubber { Acrylic Rubber ( ACM Rubber ) , Butadiene Rubber ( BR Rubber ) , Butyl Rubber ( IIR Rubber ) , Chlorosulfonated Polyethylene Rubber ( CMS Rubber )/ Hypalon Rubber , Ethylene Propylene Diene Monomer Rubber , Fluoroelastomers Rubber ( FKM Rubber )/ Viton Rubber , Isoprene Rubber ( IR Rubber ) , Nitrile Rubber ( NBR Rubber ) , Perfluoroelastomer Rubber ( FFKM Rubber ) , Polysulfide Rubber ( PSR Rubber ) , Silicone Rubber ( SIR Rubber ) , Styrene Butadiene Rubber , Polychloroprene Rubber ( CR Rubber ) / Neoprene Rubber }

Liner Characteristic: High Abrasion Rubber , Anti Friction Rubber , Wear Resistant Rubber

Surface Coating:

Painting is 2 coat system

Primer paint is epoxy zinc Phosphate Primer To dry film thickness of 75um

Top coat is High build epoxy to dry film thickness of 175um

Total paint thickness is 250um

Application Area:
Agricultural Industry , Aerospace / Aviation Industry , Automobile Industry , Chemical Industry , Construction Industry , Defense Industry , Medical Industry , Mining Industry , Petroleum Industry , Power Generation , Printing & Paper Industry , Textile Industry And Other Industries.
