Description

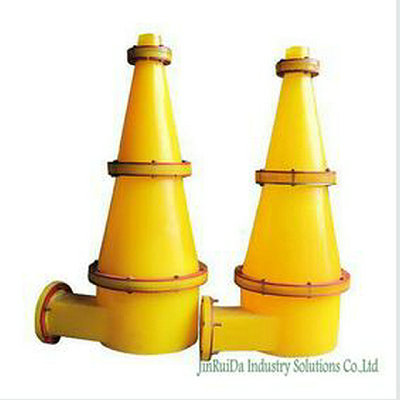

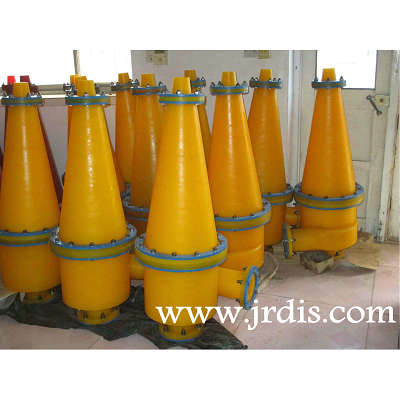

Polyurethane Hydrocyclone is a hydro cyclone made of polyurethane elastomer. It has the characteristics of high wear resistance, high strength, light weight and long service life
Polyurethane Hydro Cyclone Operational Principle:
Polyurethane Cyclone is a separation and classification equipment.
Based on the principle of centrifugal sedimentation, a strong three dimensional elliptical strongly rotating shear turbulence motion is generated when the two mixed liquids are separated from the Polyurethane Hydro Cyclone into the cyclone at a certain pressure.
Due to the size difference between the coarse particles and fine particles, so the mixed liquid by centrifugal force, centripetal force, drag force etc. in different sizes.
By centrifugal sedimentation, the majority of coarse particles through the Polyurethane Hydrocyclone underflow outlet, while the majority of fine particles from the overflow tube discharge, so as to achieve separation.
Polyurethane Hydro Cyclone Characteristic:
♠The high efficiency liquid/liquid hydro cyclone provides maximum oil/water separation efficiency,
♠The solid/liquid hydro cyclone is a cyclone clarifier that offers continuous solids removal from liquid.
♠Both can be used in industrial process water, industrial reuse, oil/water separation, andclarification/separation applications.
♠The liquid/liquid Polyurethane Hydro Cyclones is one of the most advanced, yet least complicated oil/water separation devices available.
♠It effectively removes free oil and grease in a compact package, at a cost far less than other types of separators. Liquid/liquid hydro cyclones are ideal for oily process water andoil-field produced water applications.
♠The solid/liquid Polyurethane Cyclones offers effective solids removal in a compact package.
♠It can handle high levels of solids, with removal capabilities down to five micron.Solid/liquid Polyurethane Cyclones are ideal for treating oily process water and oil-field produced water, desanding of injection water and for sand jetting systems applications.
Polyurethane Hydro Cyclones Use:
♣Due to the higher recovery rates of the 10, 12, 15 and 20 inch (250, 305, 380 and 500mm) Classifying Polyurethane Cyclones, an optimum amount of fine particles that are washed will be recovered from a dilute stream and transported to downstream dewatering equipment.
♣Available in 10, 12, 15, and 20-inch (250, 305, 380, 500mm) diameters.
♣Unique lower cone arrangement permits ultra fine separations
♣Ranging from near 60 to 200 mesh and (0.250 to 0.074mm) D95 separation size
